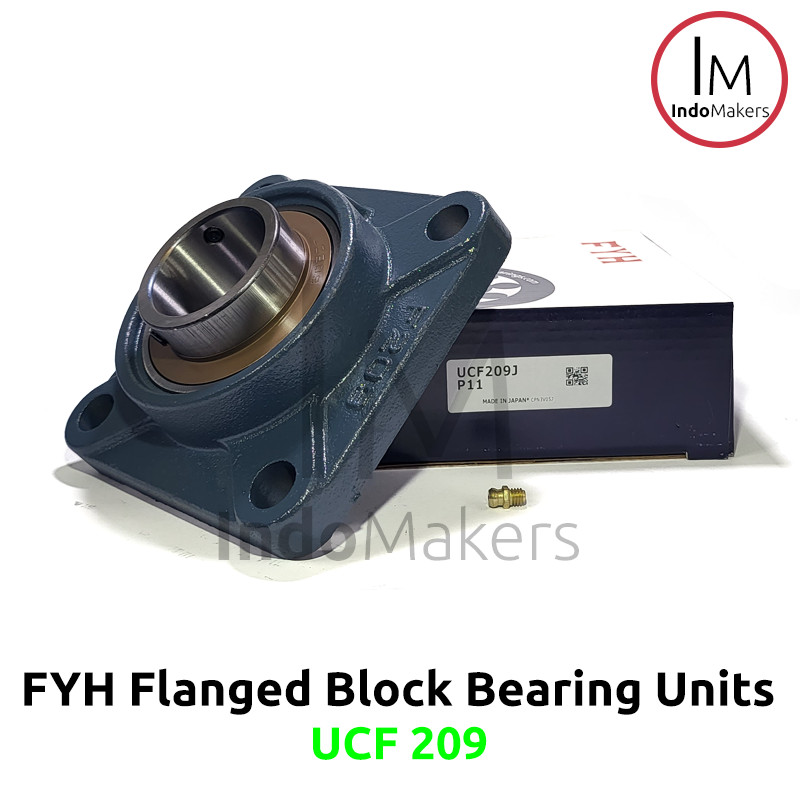

Flanged Block Bearing Unit UCF 209 – As 45mm FYH Japan

Description

Flanged Block Bearing Unit UCF 209 – As 45mm FYH Japan

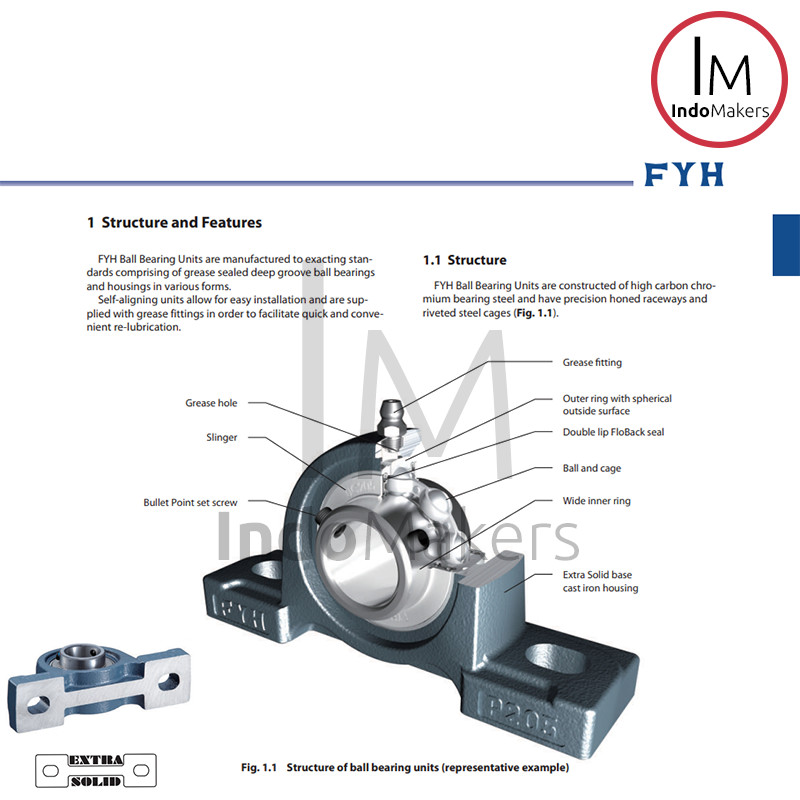

FYH Ball Bearing Units are manufactured to exacting standards comprising of grease sealed deep groove ball bearings and housings in various forms.
Self-aligning units allow for easy installation and are supplied with grease fittings in order to facilitate quick and convenient re-lubrication.

Features :
1. Supreme load capacity and accuracy.
2. Rational self-aligning mechanism and optimal fit.
3. Superior sealing performance.
4. Simple lubrication.
5. Highly rigid and rugged cast iron housings.
6. Simple installation and handling.
7. Wider series and models.

Code : UCF 209
Housing : Cast Iron
Bearing : High Carbon Chromium Steel
Bore / As / Inner Diameter : 45mm

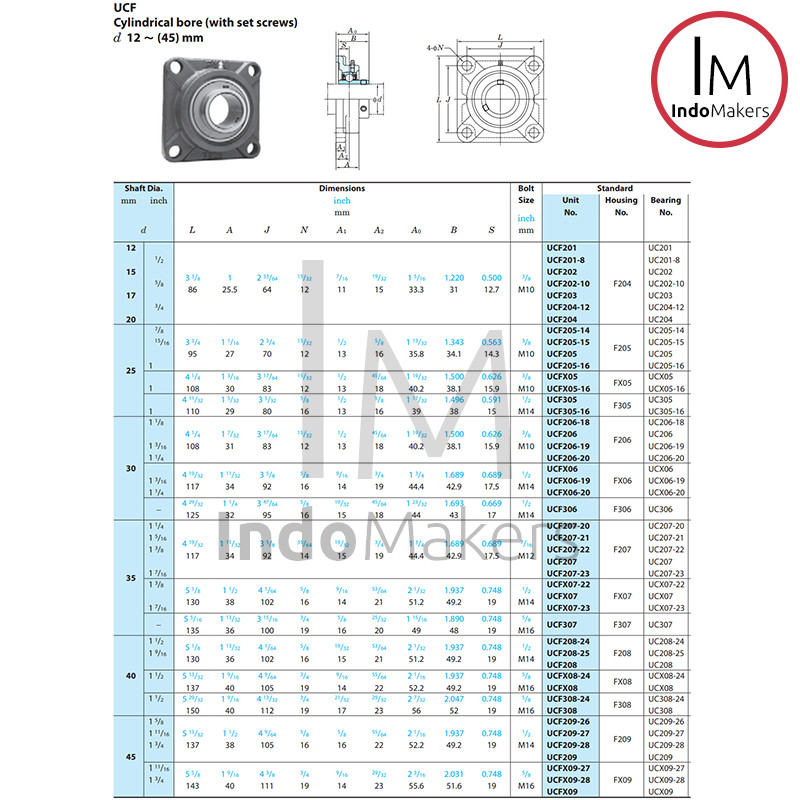

Dimensional Measurement : (harap lihat pada tabel dimensi)

Note :
Harap melihat datasheet lengkap di website FYH.
Foto dengan fisik barang mungkin dapat berbeda karena faktor cahaya, dan lainnya.

Harga tertera untuk :
1 pcs Flanged Block Bearing Unit UCF 209 – As 45mm FYH Japan
